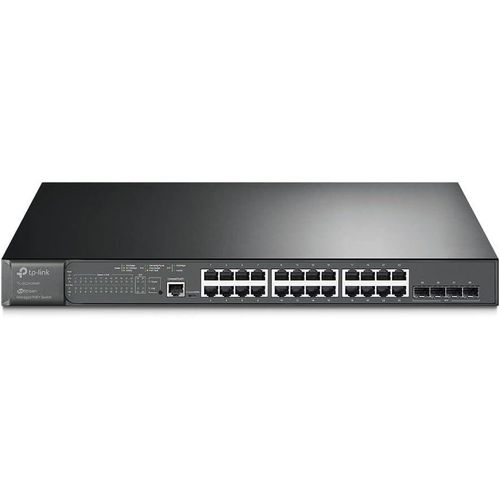

TP-Link Omada JetStream 28-Port Gigabit L2+ Managed Switch with 24 PoE+ Ports and 4 Gigabit SFP Slots – TL-SG3428MP

TP-Link TL-SG3428MP PoE Switch powers enterprise-grade networks with high-density PoE+ and advanced L2+ management. This JetStream managed switch integrates 24 PoE+ ports and 4 SFP slots seamlessly. It supports Omada SDN for centralized control. Users achieve scalable, secure, and efficient operations.

Product Details

What is the TP-Link TL-SG3428MP PoE Switch?

This L2+ managed switch features twenty-four 10/100/1000 Mbps RJ45 PoE+ ports. It includes four Gigabit SFP slots for fiber uplinks. It complies with IEEE 802.3af/at standards. Each PoE port delivers up to 30 W. The total PoE budget reaches 384 W. Omada SDN compatibility enables cloud-based management with zero-touch provisioning. Web GUI, CLI, SNMP, and RMON support detailed configuration. Layer 2+ capabilities encompass static routing, VLANs, STP/RSTP/MSTP, and link aggregation. Security features include ACL, port security, storm control, DHCP Snooping, and 802.1X authentication. QoS prioritizes L2/L3/L4 traffic. Dual fans ensure cooling in rackmount setups. Metal chassis provides durability.

For details on PoE technology, visit Wikipedia’s Power over Ethernet page.

Use Cases for TP-Link TL-SG3428MP PoE Switch

Enterprises deploy large-scale IP camera surveillance across facilities. It powers numerous high-consumption devices without extra outlets. Offices connect extensive Wi-Fi access points for seamless coverage. VoIP systems support high-volume calls in corporate environments. Retail chains integrate POS terminals, cameras, and digital signage. Hotels manage multi-building networks for guest and operational needs. Warehouses use SFP slots for long-distance fiber links. Educational campuses equip labs and administrative areas reliably.

Pro-level details include 384 W budget for intensive PoE loads. Static routing optimizes internal segmentation. IGMP Snooping reduces multicast traffic efficiently. Omada SDN facilitates remote monitoring and provisioning. Comprehensive ACL and QoS secure and prioritize applications. Compatibility covers standard PoE devices like cameras, APs, and phones. This switch scales for medium to large professional deployments.

Explore similar managed options like the D-Link DGS-F1210-26PS-E 24-Port Managed Gigabit Switch for alternative configurations.

Key Specs of TP-Link TL-SG3428MP PoE Switch

• Ports: 24 × 10/100/1000 Mbps RJ45 PoE+, 4 × Gigabit SFP Slots
• PoE Standard: IEEE 802.3af/at compliant
• PoE Power per Port: Up to 30 W
• Total PoE Budget: 384 W
• Switching Capacity: 56 Gbps
• Packet Forwarding Rate: 41.66 Mpps
• MAC Address Table: 8K or 16K entries (varies by version)
• Jumbo Frame: 9 KB or higher
• Forwarding Method: Store-and-Forward
• Flow Control: IEEE 802.3x
• Auto MDI/MDIX: Yes on all RJ45 ports
• Management: Web GUI, CLI (RJ45/Micro-USB Console), SNMP v1/v2c/v3, RMON, Omada SDN
• Power Supply: 100-240 VAC, 50/60 Hz
• Power Consumption: Max around 463 W (with full PDs), lower idle (varies by version)
• Dimensions: 440 × 330 × 44 mm
• Installation: Desktop or rackmount (1U)
• Operating Temperature: 0°C to 45°C
• Storage Temperature: -40°C to 70°C
• Operating Humidity: 10% to 90% non-condensing
• LED Indicators: Power, SYS, PoE MAX, FAN, Port Status
• Casing: Metal
• Fan: Yes (dual fans)
• Additional Features: Static Routing, IGMP Snooping, ACL (L2-L4), QoS (L2/L3/L4), PoE Auto Recovery, VLAN Support, IPv6 Dual Stack, Port Mirroring, Link Aggregation

Learn about networking standards from IEEE official resources.

Why TP-Link TL-SG3428MP PoE Switch Stands Out

It powers twenty-four ports with a high 384 W budget for demanding applications. Full Gigabit speeds eliminate bottlenecks in heavy traffic. Four SFP slots support flexible fiber expansions. Omada SDN integration provides cloud control and intelligent monitoring. Advanced L2+ features like static routing enhance efficiency. Robust security protects against threats comprehensively. QoS optimizes voice, video, and data flows. Rackmount design fits enterprise environments. Dual fans ensure reliable high-load performance. This delivers professional scalability and management affordably.

Enhance your wireless setup with the TP-Link AX300 Nano Wi-Fi 6 Adapter.

Why Choose Plug Tech Hub

Plug Tech Hub provides genuine TP-Link products with efficient delivery in Kenya. Expert support guides advanced deployments. The inventory includes high-capacity managed switches. Buying here assures authenticity and satisfaction. Order your switch now.

Complement with reliable cabling like the D-Link Cat6 UTP Cable Roll.
