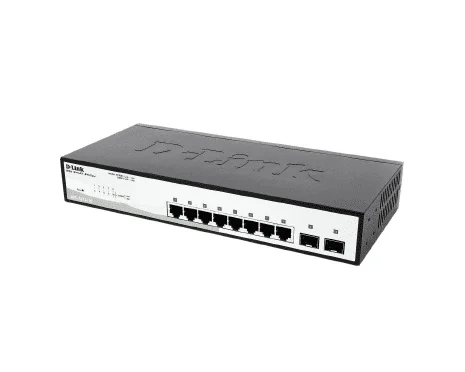

D-Link DGS-1210-10P 8-Port Gigabit PoE Smart Switch

The D-Link DGS-1210-10P Smart Switch is an enterprise-grade networking solution built for modern, demanding environments. Designed for small to medium-sized businesses, this switch combines Power over Ethernet delivery, advanced Layer 2+ management, and robust security into a compact, fanless unit. It eliminates the need for separate power adapters by powering connected devices directly through the network cable.

---

D-Link DGS-1210-10P Smart Switch: Product Details

The DGS-1210-10P is a 10-port smart managed switch featuring eight 10/100/1000Base-T PoE ports and two Gigabit SFP uplink ports. It supports both IEEE 802.3af and IEEE 802.3at PoE standards, delivering up to 30W per port within a 65W total power budget. The switch operates at a switching capacity of 20 Gbps, with a forwarding rate of 14.88 Mpps.

Its fanless design ensures silent operation, making it ideal for office and sensitive deployment environments. A web-based management interface, Compact CLI, and SNMP support offer flexible administration. Optional integration with D-Link Nuclias Connect enables centralized cloud or on-premises network management at no extra cost.

---

Technical Specifications

Port Configuration

• 8 x 10/100/1000Base-T RJ45 PoE/PoE+ ports
• 2 x Gigabit SFP optical uplink ports
• PoE standard: IEEE 802.3af / IEEE 802.3at
• Maximum PoE per port: 30W
• Total PoE power budget: 65W

Performance

• Switching capacity: 20 Gbps
• Forwarding rate: 14.88 Mpps
• MAC address table: 8,000 entries
• Jumbo frame support: Up to 9,216 bytes
• IEEE 802.3x Flow Control support

Layer 2+ Features

• 802.1Q VLAN tagging and static routing
• IGMP Snooping, Port Mirroring, and LACP
• Multiple Spanning Tree Protocol (MSTP)
• Auto Voice VLAN and Auto Surveillance VLAN
• Loopback Detection and Cable Diagnostics

Security

• D-Link Safeguard Engine against traffic flooding
• 802.1X port-based RADIUS authentication
• Access Control Lists (ACLs) for traffic filtering
• ARP Spoofing Prevention and DHCP Server Screening
• Storm Control for broadcast, multicast, and unicast

Management and Standards

• Web-based GUI, Compact CLI via Telnet, and SNMP v1/v2/v3
• D-Link Nuclias Connect compatible (cloud and on-premises)
• IPv6 ready for future network addressing standards
• NDAA and TAA compliant for government and enterprise use
• D-Link Lifetime Protection (after product registration)

Physical

• Form factor: Desktop or 19-inch rack-mountable
• Fanless, silent operation
• Operating temperature: 0C to 40C
• Power input: 100V to 240V AC

---

D-Link DGS-1210-10P Smart Switch: Why It Stands Out

Built-In Surveillance Mode

The DGS-1210-10P includes a dedicated Surveillance Mode interface. It automatically detects ONVIF-compliant IP cameras and places them in a secured surveillance VLAN. This separates video traffic from data traffic, improving both performance and security. Network administrators no longer need dedicated hardware for IP surveillance deployments.

PD Alive for Maximum Uptime

The PD Alive feature monitors all connected PoE devices. When a device becomes unresponsive, the switch automatically reboots it. This minimizes downtime without requiring manual intervention. It is an essential reliability feature for always-on environments such as retail floors or surveillance networks.

D-Link Green 3.0 Energy Efficiency

This switch is built with energy efficiency in mind. It complies with IEEE 802.3az Energy Efficient Ethernet and supports time-based PoE scheduling. Administrators can define specific windows during which PoE power is active per port. This reduces energy consumption without compromising network performance.

---

D-Link DGS-1210-10P Smart Switch: Use Cases and Regular Users

Small and Medium Business Networks

IT administrators at SMBs use this switch to build scalable, managed network infrastructure. VLANs segment traffic between departments, such as finance, HR, and operations. QoS settings prioritize VoIP and video conferencing traffic for clear, uninterrupted communication. Static routing offloads inter-VLAN tasks from the main router. This improves overall network efficiency across the organization.

IP Surveillance and Security Installations

Security integrators and system installers rely on the DGS-1210-10P for IP camera deployments. The Auto Surveillance VLAN automatically identifies and isolates camera traffic. Up to eight cameras can be powered directly over Ethernet, eliminating the need for dedicated power infrastructure. PoE+ support ensures compatibility with high-resolution PTZ and multi-sensor cameras requiring up to 30W per port.

VoIP and Unified Communications

The switch includes Auto Voice VLAN, which automatically detects and segments VoIP traffic. Differentiated Services Code Point (DSCP) QoS ensures voice packets are prioritized over regular data. This results in consistent call quality with minimal jitter and latency. Businesses using IP desk phones can deploy them on any PoE port without additional configuration, simplifying VoIP rollouts across the office.

Education and Healthcare Environments

Schools and clinics benefit from the switch’s NDAA compliance and enterprise security features. 802.1X authentication restricts network access to authorized devices only. ACLs prevent unauthorized traffic from traversing sensitive network segments. Silent, fanless operation makes it suitable for classrooms, reception areas, and consultation rooms where noise is a concern.

---
