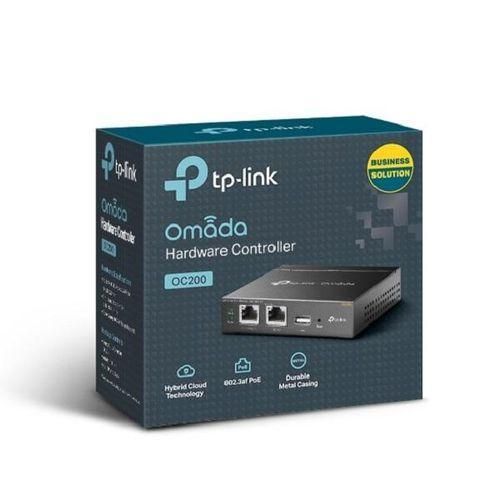

TP-Link Omada Hardware Controller – TL-OC200

TP-Link TL-OC200 Hardware Controller centralizes management of Omada networks for businesses and advanced home setups. This dedicated SDN controller simplifies configuration, monitoring, and scaling of compatible Omada devices. It supports seamless integration with access points, switches, and gateways. Users achieve efficient network oversight without relying on cloud subscriptions.

Product Details

What is the TP-Link TL-OC200 Hardware Controller?

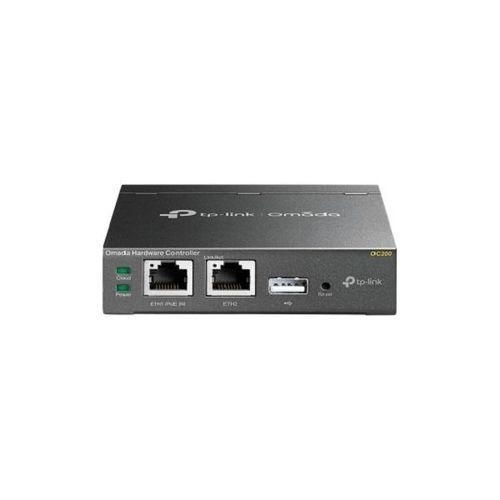

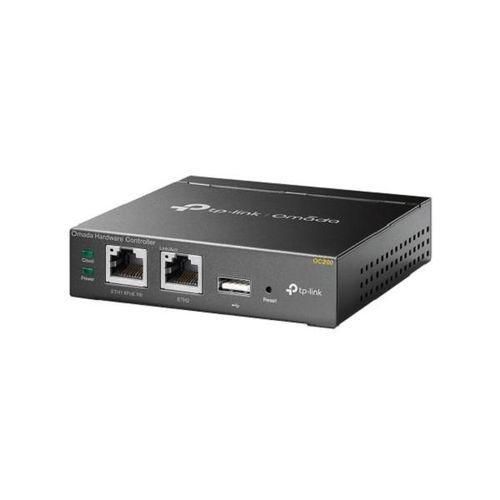

This hardware controller runs the Omada Software Defined Networking platform locally. It manages up to 100 devices including Omada access points, JetStream switches, and SafeStream routers/gateways. It features a built-in web interface for standalone operation. Omada app enables mobile management. Centralized features include zero-touch provisioning, real-time monitoring, and batch configuration. It supports multiple sites and organizations. Built-in captive portal handles guest authentication. Advanced tools cover topology views, traffic statistics, and firmware upgrades. The compact design includes dual Ethernet ports for flexible placement. It operates fanlessly for silent performance.

For insights on SDN concepts, visit Wikipedia’s Software-defined networking page.

Use Cases for TP-Link TL-OC200 Hardware Controller

Hotels manage multiple access points and guest Wi-Fi portals across floors. Retail chains monitor branch networks from a central location. Small offices control switches, gateways, and APs with unified policies. Educational institutions oversee campus-wide wireless and wired infrastructure. Enterprises deploy site-to-site management for remote locations. Property managers handle multi-tenant buildings with isolated networks. IT teams perform batch updates and troubleshooting efficiently. Businesses prefer on-premises control for data privacy and reliability.

Pro-level details include support for up to 100 managed devices and 500 clients. It enables real-time traffic analysis and bandwidth usage reports. Multi-site management allows grouping by location or department. Captive portal supports vouchers, SMS, and external RADIUS. Automatic topology mapping visualizes network layout. Firmware management ensures consistent updates across devices. This controller provides professional-grade control without recurring cloud fees.

Explore compatible devices like the D-Link DGS-F1210-26PS-E 24-Port Managed Gigabit Switch for expanded Omada ecosystems.

Key Specs of TP-Link TL-OC200 Hardware Controller

• Managed Devices: Up to 100 Omada access points, switches, and gateways
• Concurrent Clients: Supports networks with up to 500+ clients
• Ethernet Ports: 2 × 10/100 Mbps RJ45 (LAN/WAN)
• Management: Omada SDN Controller (Hardware), Web GUI, Omada App
• Multi-Site Management: Yes (multiple organizations and sites)
• Captive Portal: Yes (vouchers, SMS, external RADIUS, Facebook Wi-Fi)
• Additional Features: Zero-Touch Provisioning, Real-Time Monitoring, Topology View, Batch Configuration, Firmware Management, Traffic Statistics, Access Control, VLAN Management
• Power Supply: External 5 V / 1 A DC Adapter (micro USB)
• Power Consumption: Max 2.7 W
• Dimensions: 100 × 98 × 25 mm
• Installation: Desktop or wall-mount
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -40°C to 70°C
• Operating Humidity: 10% to 90% non-condensing
• LED Indicators: Power, System, LAN
• Casing: Plastic
• Fanless: Yes
• Additional Ports: 1 × USB 2.0 (for future use or storage)
• Memory: 128 MB Flash, 128 MB DRAM

Learn about networking standards from IEEE official resources.

Why TP-Link TL-OC200 Hardware Controller Stands Out

It offers on-premises Omada SDN control without monthly cloud fees. The hardware runs the full controller software locally for maximum reliability and privacy. It manages up to 100 devices with intuitive tools like topology mapping and batch operations. Captive portal and multi-site support suit hospitality and multi-branch businesses. Zero-touch provisioning accelerates deployments. Real-time monitoring and statistics aid proactive management. Compact, fanless design fits any environment. Dual Ethernet ports allow flexible network placement. This controller delivers enterprise-grade functionality at an SMB-friendly price.

Enhance your wireless deployment with the TP-Link AX300 Nano Wi-Fi 6 Adapter for client connectivity.
