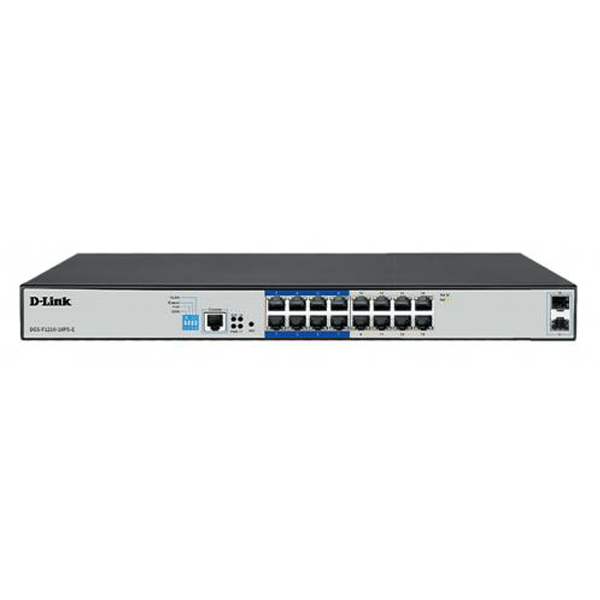

D-Link DGS-F1210-18PS-E PoE Switch — 16-Port Gigabit Long Range 250m Smart Switch

The D-Link DGS-F1210-18PS-E PoE switch is built for network deployments that demand both density and distance. With 16 full Gigabit PoE+ ports, 250-metre long-range reach, and advanced Layer 2 management, it powers and connects IP cameras, wireless access points, and VoIP devices across large premises. Compact, rackmountable, and backed by 6kV surge protection, it is the smart choice for surveillance and SME network infrastructure across Kenya.

What Is the D-Link DGS-F1210-18PS-E PoE Switch?

The DGS-F1210-18PS-E is an 18-port Layer 2 smart managed Gigabit switch. It features 16 x 10/100/1000 Mbps PoE+ downlink ports and 2 Gigabit SFP uplink ports. It supports IEEE 802.3af and 802.3at standards and delivers up to 30W per port. The total PoE budget is 150W. Four DIP switch-selectable modes — Extend, VLAN, QoS, and PoE — allow instant configuration without accessing a management interface.

D-Link DGS-F1210-18PS-E PoE Switch Technical Specifications

• Ports: 16 x 10/100/1000 Mbps PoE+ RJ45 + 2 x Gigabit SFP uplink
• PoE standards: IEEE 802.3af / IEEE 802.3at
• PoE budget: 150W total | 30W max per port
• Max PoE distance: 250 m (Extend Mode, Cat5e / Cat6, ports 1–8)
• Switching capacity: 36 Gbps
• Packet forwarding rate: 23.8 Mpps
• VLAN support: 4K VLANs (802.1Q, MAC, IP, Voice VLAN)
• MAC address table: 8K entries
• Surge protection: 6kV on all ports
• DIP switch modes: Extend, VLAN, QoS, PoE Auto-Reboot
• Power input: 100–240V AC, 50–60 Hz
• Max power consumption: 150W (with PoE)
• Dimensions: 440 x 180 x 44 mm (1U rackmount)
• Weight: 2.9 kg
• Operating temperature: 0°C to 50°C
• Operating humidity: 10% to 90% non-condensing

Why the D-Link DGS-F1210-18PS-E PoE Switch Stands Out

D-Link DGS-F1210-18PS-E PoE Switch Extends Reach to 250 Metres

Standard PoE switches cap cable runs at 100 metres. In Extend Mode, ports 1 through 8 push that to 250 metres on Cat5e or Cat6. Cameras and access points can be installed at their optimal positions — not just where power outlets exist. This eliminates intermediate switches and reduces cabling costs for large compound deployments.

Advanced Layer 2 Management and Security Features

This switch supports STP, RSTP, and MSTP spanning tree protocols, IGMP v1/v2 snooping, and link aggregation. Security includes 802.1X port-based authentication, DHCP snooping, ARP protection, and DoS mitigation. Administrators manage everything via a web GUI, CLI, or SNMP — giving full control over all 18 ports from anywhere on the network.

Built-In 6kV Surge Protection on Every Port

All ports carry 6kV protection against lightning strikes and voltage spikes. This is especially critical in Kenya, where grid instability is common. The protection reduces hardware damage risk and lowers long-term maintenance costs — particularly for outdoor and perimeter surveillance installations.

DIP Switch Modes for Zero-Complexity Configuration

VLAN Mode isolates ports to suppress broadcast storms. QoS Mode prioritises video for smooth surveillance feeds. PoE Mode auto-reboots unresponsive powered devices. All modes are activated via a physical DIP switch — no software login needed for standard configuration changes.

D-Link DGS-F1210-18PS-E PoE Switch Use Cases and Regular Users

IP Surveillance and CCTV Installers

Security integrators deploying 8 to 16 cameras across hotels, schools, and office compounds benefit from this switch’s 250-metre reach. Cameras at perimeter walls are powered over long cable runs without extra hardware. The PoE watchdog automatically recovers locked devices — keeping surveillance online at unmanned sites.

SMEs and Growing Office Networks

Businesses deploying wireless access points, VoIP handsets, and IP intercoms across office floors benefit from 16-port density and smart management. VLAN segmentation cleanly separates voice, video, and data traffic across the same switch. The web-based interface makes day-to-day administration straightforward — no specialist networking expertise required.

Schools, Clinics, and Community Campus Networks

Institutions operating across multiple buildings need both port density and distance reach. The DGS-F1210-18PS-E connects up to 16 PoE devices simultaneously — spanning distances that standard switches simply cannot support. It is a practical, cost-effective fit for compound-style layouts common across Kenya’s education and healthcare sectors.

Why Buy the D-Link DGS-F1210-18PS-E PoE Switch at Plugtech Hub

Plugtech Hub is Kenya’s trusted supplier of genuine D-Link hardware, backed by manufacturer warranties and expert after-sales support. Every unit is authentic and verified. The team provides hands-on guidance for installation, VLAN setup, and network planning. Order today at plugtechhub.co.ke.
